YELLOW BAFFLE FOAM (PETROL USE)
ATL Reticulated (open pore) Yellow Safety Foam for use with Petrol.
Specification:
* For in-tank use with petrol
* Reduces fuel slosh
* Suppresses explosion (fuel cell must be at least 80% foam-filled)

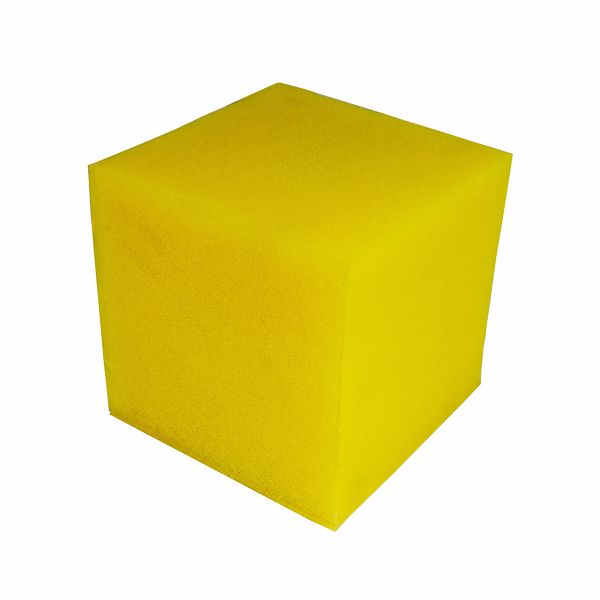

* Sold in 28 Litre cubic foot blocks (300x300x300mm)
* Reduces fuel cell capacity by up to 5% (3% displacement, 2% 'clingage')
Baffle foam can be supplied in custom shapes and quantities. Please contact us for further information.
Technical data:
* Primary Uses - Petrol, Race Fuels, Oil, Kerosene, Avgas, JP Fuels
* Colour - Yellow
* Specification - MIL-B-83054
* Polyol Type - Polyester
* Density Range (lb/ft^3) - 1.20 to 1.45
* Porosity, pore size (ppi) - 8 to 18
* Air Pressure Drop (in. of water) - 0.140 to 0.230
* Tensile Strength (psi) Min - 15
* Tensile Strength at 200% Elongation (psi) Min - 10
* Ultimate Elongation (%) Min - 220
* Tear Resistance (lb/In) Min - 5
* Constant Deflection Compression Set (%) Max - 35
Compression Load Deflection at:
* 25% Deflection (psi) Min - 0.3
* 65% Deflection (psi) - 0.5
* Fuel Displacement/ Max Vol % - 2.5
* Fuel Retention (Max Vol %) - 2.5
* Flammability (in/min) Max - 15
* Extractable Materials (Wt %) Max - 3
* Entrained Solid Contamination (mg/ft^3) Max - 11
* Typical Electrical Resistivity (OHM-CM) - 8x10^13
