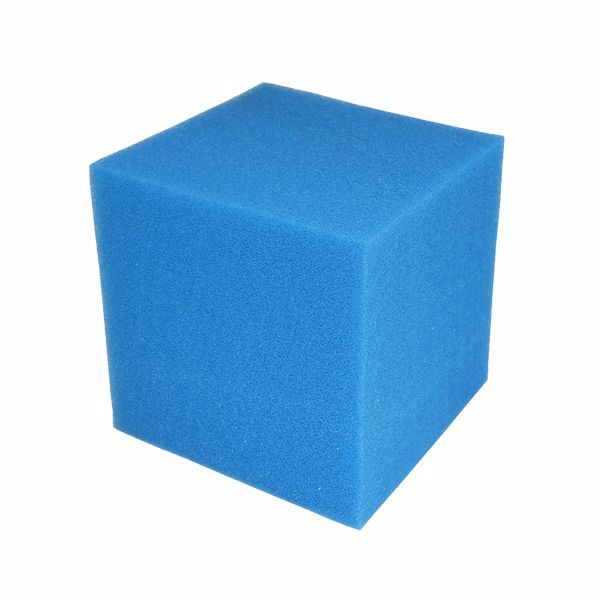

BLUE BAFFLE FOAM (DIESEL, WATER, METH)
ATL Reticulated (open pore) Blue Safety Foam for use with Diesel, Water and Methanol.
Specification:
* For in-tank use with Diesel / Water / Methanol
* Reduces fuel slosh
* Suppresses explosion (fuel cell must be at least 80% foam-filled)
* Sold in 28 Litre cubic foot blocks (300x300x300mm)
* Reduces fuel cell capacity by up to 5% (3% displacement, 2% 'clingage')
Baffle foam can be supplied in custom shapes and quantities. Please contact the us for further information.
Technical data:
* Primary Uses - Diesel, Methanol, Water
* Colour - Light Blue
* Specification - MIL-B-83054
* Polyol Type - Polyether
* Density Range (lb/ft^3) - 1.20 to 1.45
* Porosity, pore size (ppi) - 24 to 34
* Air Pressure Drop (in. of water) - 0.270 to 37015
* Ultimate Elongation (%) Min - 100
* Tear Resistance (lb/In) Min - 3
* Constant Deflection Compression Set (%) Max - 30
Compression Load Deflection at:
* 25% Deflection (psi) Min - 0.35
* 65% Deflection (psi) - 0.6
* Fuel Displacement/ Max Vol % - 2.5
* Fuel Retention (Max Vol %) - 5
* Flammability (in/min) Max - 15
* Extractable Materials (Wt %) Max 3 - 3
* Entrained Solid Contamination (mg/ft^3) Max - 11
* Typical Electrical Resistivity (OHM-CM) - 1x10^15
