500kg 415v ELECTRIC WINCH

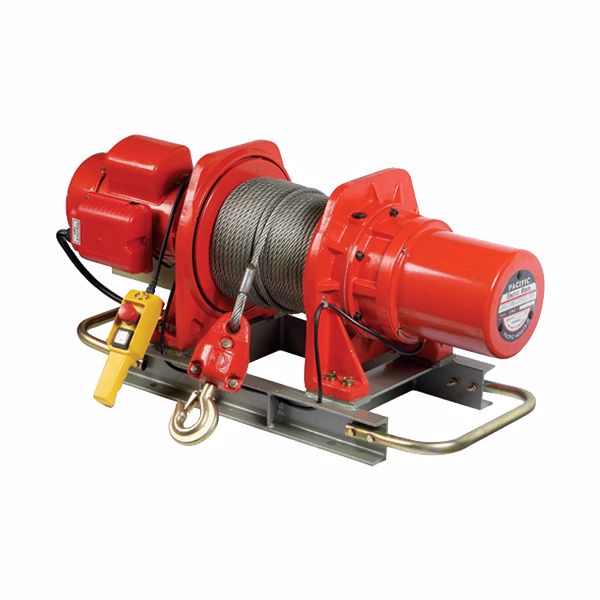

This ComeUp CWG-30151 Electric Winch is precision engineered and constructed from heavy duty material which creates a high performance product with low maintenance; suited for a wide range of applications.
Comeup Electric Winches come in various sizes and lifting capacities. The electric winches feature the CP, CWG and CWL ranges.
Features:
* Lightweight and compact design for easy installation and portable use.
* Electromagnetic spring-applied failsafe brake designed for both static and dynamic loading which applies automatically in the event of power loss.
* IP65 pendant control.
* 24V x 3 meter push button control supplied as standard with all CP and CWG models.
* 240V x 10 meter direct online control pendant as standard with CWL models.
* Compact load sharing design of the heat-treated planetary gear which ensures quiet operation and long life.
* Emergency stop function switch is featured on all models.
* Heavy duty high efficiency ball bearing on all running surfaces.
* Planetary gears for maximum mechanical efficiency.
* Enclosed drum flange to prevent rope becoming trapped between drum and support castings.
* Cast steel foot mountings.
* Fabricated steel drum.
* Supplied on steel base plate ready to mount.
* Quiet running.
* Optional cordless radio remote control available on request.
* Low voltage control ass'y is available upon request.
Specifications:
* Lifting capacity: 500 kg at wire rope top layer
* Lifting speed: 12 - 18 m/min
* Power source: 3 phase, 415V
* Motor rating IP44: 1.5 kw x 4 poles induction brake motor
* Gear ratio: 57:1
* Maximum lifting height: 58 m
* Braking methods: Electromagnetic
* Wire rope: 9 mm x 60 m
* Drum length: 240 mm
* Drum dia.: 140 mm
* Drum flange dia.: 280 mm
* Mounting bolts pattern: 400 mm x 325 mm
* Net weight (standard version): 125 kg
* Gross weight: 150 kg
