DINO-LITE RACK- PRECISION TABLETOP STAND

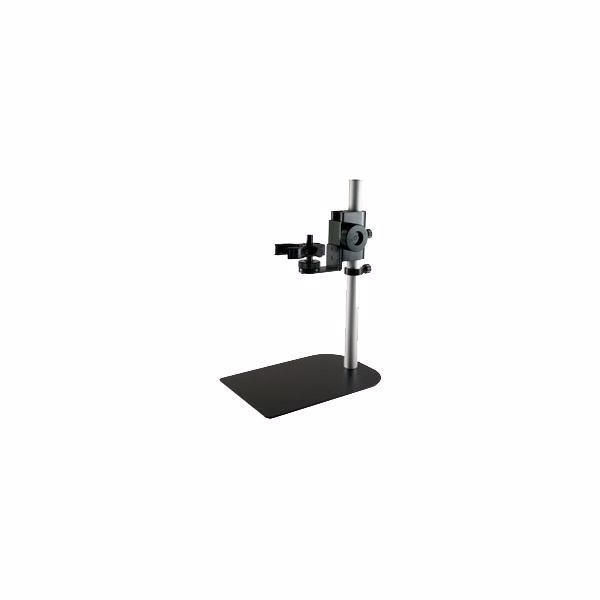

The MS35B is an economical and rigid vertical desktop stand that was designed to be used with the Dino-Lite handheld digital microscope cameras. It provides up to 360 degrees of horizontal axis rotational perspective and as much as 20cm of vertical working distance from the object.
The Dino-Lite holster is mounted onto a ball and socket jointed post, which allows for a maximum of 45 degrees of adjustable lateral viewing angles. The ball and socket jointed post is mounted onto a dove tail slider for additional focus and magnification support. Lastly the dove tail slider can be positioned onto any point of the pole for the Dino-Lite various focal distances. The precision machine crafted components of this stand provides smooth adjustment and positioning in a well balanced and stable ergonomic design.
The MS35B is manufactured from a combination of resilient stainless steel and lightweight recycled aluminum. The MS35B can easily and conveniently be moved from one work area to another while enduring the harshest of work environments.
The OPTIONAL MS35BE comes with ESD (electrostatic discharge) safe base plate instead of the standard MS35B base plate.
Unit Dimension: 20.7cm (L) x 12.7cm (W) x 30.5cm (H)
Package Dimensions: 30cm(L) x 15cm(W) x 6.5cm (H)
