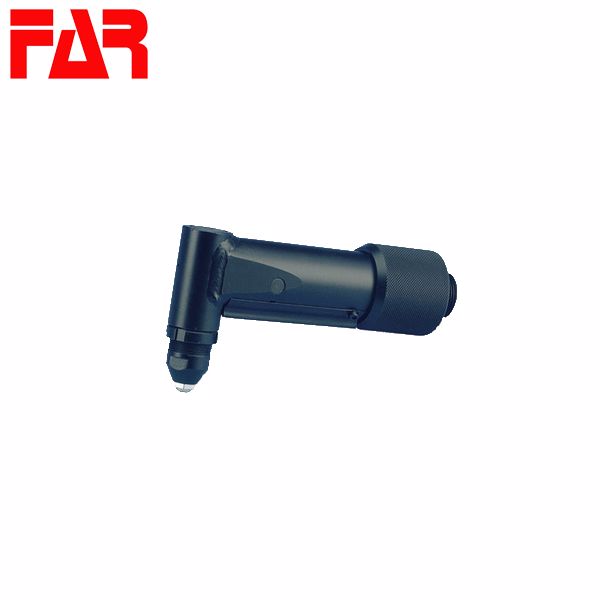

ANGLE HEAD

Brand: Far
SKU: 705023
Download brochure

ANGLE HEAD

Special Riveting Angle Head. This special head is suitable to use in confined and narrow spaces. This head assembly is for rivets Ø 2.4mm to 4.8mm (except Ø 4.8mm stainless steel).

It can only be assembled on the riveting tools RAC 180, RAC 181 and RAC 182. You can see in the video how this head assembly works.

Attachments

Products specifications
Optional Nozzle(s) Code Description 719010 Extended nozzle U2 ø 2,5 / 3 / 3,2 719011 Extended nozzle U2 ø 3,5 / 4 719012 Extended nozzle U2 ø 5 719013 Extended nozzle U2 ø 5 719016 Extended nozzle U1 ø 2,5 ÷ 3,2 719017 Extended nozzle U1 ø 3,5 ÷ 4 719018 Extended nozzle U1 ø 5 Al 719019 Extended nozzle U1 ø 5
Overall Height 144 (mm)
Overall Length 78 (mm)
Riveting Capacity For rivets Ø 2.4 to 4.8 (except Ø 4.8 Inox)
Weight 900 (grams)
