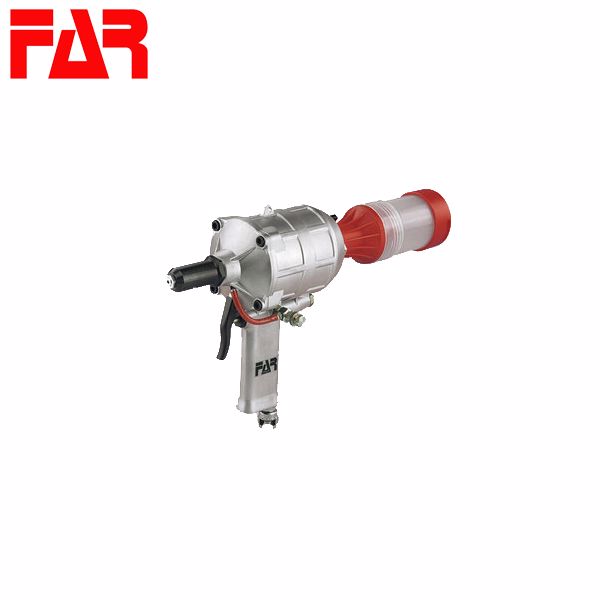

4.8mm PNEUMATIC RIVETER

Brand: Far
SKU: RAC83AX

4.8mm PNEUMATIC RIVETER

This is an Industrial, pneumatic (air) ONLY operated tool, which provides less maintenance as it does not require hydraulic (oil) fluid to assist in pulling of the rivet. This tool is a solid performer and is competitively priced. It also features the ability to hold the rivet in the nose and automatically collect the sheared mandrel in the rear collection chamber.

The tool has a hanger point to allow it to be used with tool suspension systems and is fitted with an exhaust silencer, which greatly reduces operational sound levels. It also features a comfortable and well balanced body shape to enhance operator comfort.

Capacity of this tool is from 2.4mm to 4.8mm (Aluminium).

Attachments

Products specifications
Capacity Standard Rivets: Ø 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm Multistage Rivets: Ø 3.2mm, 4.0mm Multinox Rivets & Tamp: Ø 4.0mm Standard rivets Ø 4.8mm only in aluminium. Multifar rivets Ø 4.0mm only in aluminium.
Max. Force 5,372 N
Overall Height 200 mm
Overall Length 360 mm
Stroke 19 mm
Weight 1.75 kg
