HOLEMAKER AIR 35 PNE MAGNETIC BASE DRILL
The HMP35AD is a small portable pneumatic drilling machine which allows holes to be drilled up to 35mm diameter in places with restricted space, using standard 3/4" Weldon Shank cutters. This machine is the lowest height pneumatic magnetic drill currently available on the world market. The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.
*12mm twist drill capacity using Weldon Shank twist drill bits.
Both the machine and the body of the HMP35AD-ATEX drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.
SPECIFICATIONS:
Capacity (Diameter): 35mm
Capacity (Depth): 25mm
Motor: 800 watt pneumatic, 1400L/min
Speed: 240rpm
Weight: 13.0kg
Height: 183mm Constant Working Height
Stroke: 39mm
Magnetic Dead Lift: 6500Nm On 25mm Steel Plate
Through Spindle Coolant System

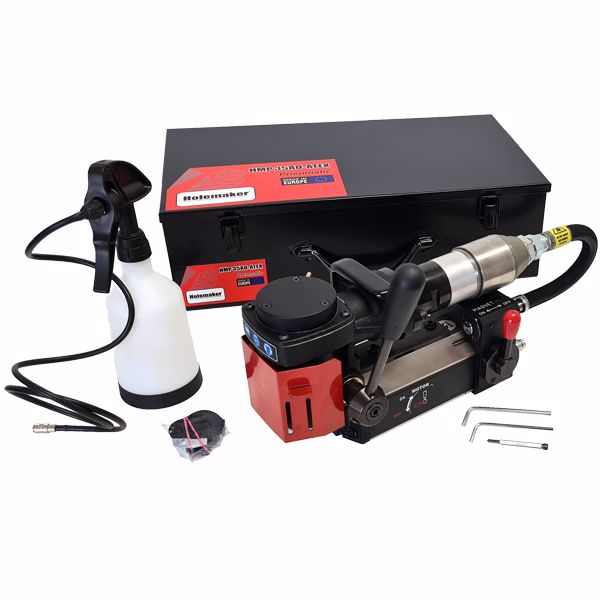

Supplied In Metal Carry Case With Cutter Guard & Safety Strap
