KRONTEC HOSE ASSEMBLY - 0001 - 680mm

Brand: Krontec
SKU: KHA311-0001-1

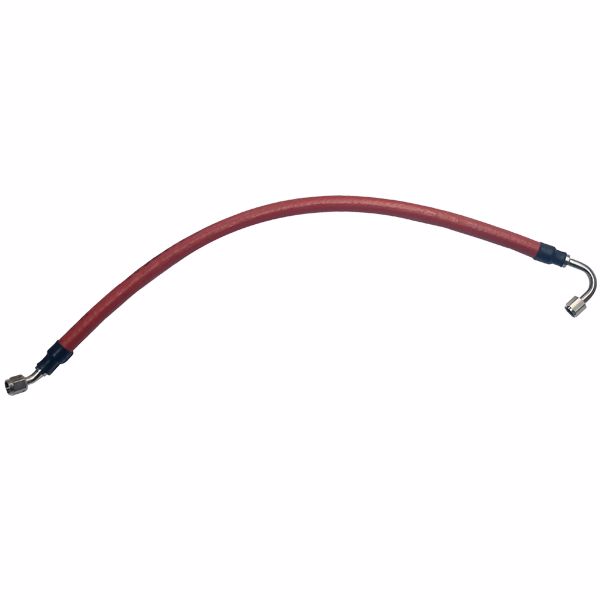

KRONTEC HOSE ASSEMBLY - 0001 - 680mm

Krontec hose assembly for power steerring line.
This Titflex High Pressure hose and fittings assembly has a working pressure 210bar, but burst pressure of 840bar, which helps avoid any destruction from high peeks during racing.
The hose used in this assembly is an Antistatic PTFE Tube with a stainless steel outer cover. This hose has chemical resistance compatible with all fluids, being the best chemical resistance of all known materials, with usage for Fuel, oil, breather systems, and pneumatic.
It is also fitted with a protective firesleeve.
Pwr/S pump to sensor HP

TYPE OF HOSE/SIZE/FITTING -6 HOSE AND FITTINGS
HOSE PART NUMBER KRONTEC R160-06D
HOSE ID (Min) (MM) 7.6
HOSE OD (Min) (MM) 12.5
HOSE MIN BEND RADIUS (MM) 63.5
HOSE OPERATING PRESSURE (BAR) 210
HOSE CUT LENGTH (MM) 680
FITTING A 120
FITTING B 45
FITTING B ALIGNMENT 230
EXTRA HEAT SLEEVING/NOTES -6 GOODRIDGE FIREPROOF SLEEVE 660MM
