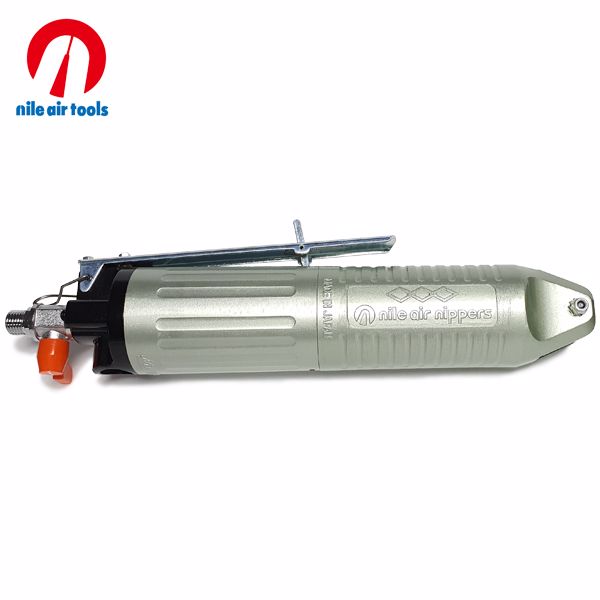

AIR OPERATED CUTTER/CRIMPER HAND PIECE

Brand: Nile
SKU: MP35A

AIR OPERATED CUTTER/CRIMPER HAND PIECE

Air operated wire cutter/crimper can also be used to perform many types of work including cutting, crimping, punching, and caulking just by changing the blades.

The tool does not come with any blades, so as such you must choose an appropriate set of blades to suit your application.

The maximum capacity of this tool is 4mm wire cutting for steel wire and 4.8mm for copper wire using the P8P blade set. There are many blades to fit this tool for varied applications.

Please see the attached brochure in Technical Documents for more information.

Made in Japan.

Attachments

Products specifications
Air Pressure Rec. 4.96 - 6 bar (72 - 87 psi)
Cutting Capacity Up to 4mm on steel wire using P8P Blade Set Up to 4.8mm on copper wire using P8P Blade Set
Diameter Outside (od) 56 mm
Overall Length 268 mm
Power 4,410 N approx.
Weight 0.83 kg
