73/74 SERIES QUICKCLAMP

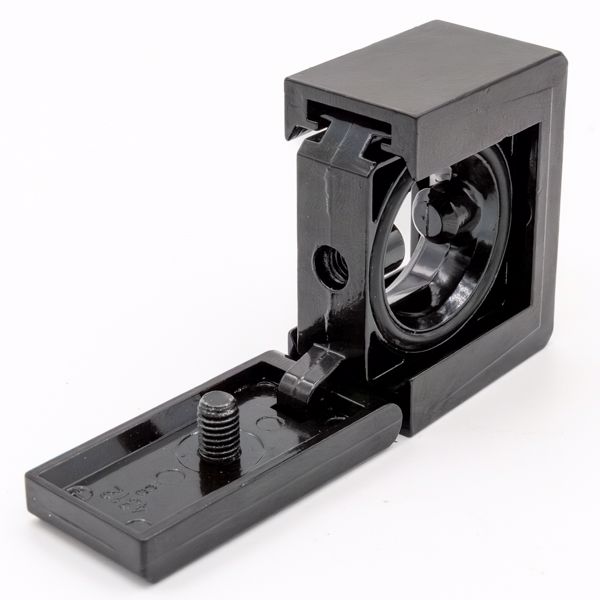

Quick Clamp - Use with all 73 and 74 Series Products to provide modular installation capability. Flanges on the products slide into V grooves in the Quickclamp. Two face-sealing o-rings in the Quckclamp provide a positive seal when the clamp is closed and the captive screw is tightened. A Quickclamp adds 0.54" (13.6 mm) to the overall length of a combination unit. Tighten screw with a 5/32" (4 mm) hex or T25 Torx wrench. (30 in. lbs. Torque)
Used on B74 series 3/4" FR and FRL units, B74FRL34WB-A and B74FRL34WB
You can order this part and it mating item to have a complete assembly - refer to our part# 4314-52
Material: Zinc
Quickclamp part number: 4314-51
O-ring kit part number: 4384-770
