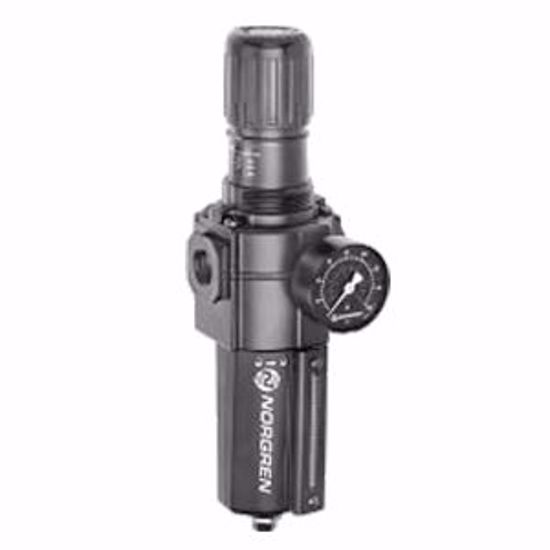

3/8" BSP FILTER REGULATOR c/w AUTODRAIN

Brand: Norgren
SKU: B73G-3GK-AD3-CP

3/8" BSP FILTER REGULATOR c/w AUTODRAIN

3/8" BSP filter regulator comes complete with Auto-drain, gauge and mounting bracket and is ready to go! Also features is a solid aluminium bowl making this a very solid and reliable unit.

Features are:

Excelon design allows in-line installation or modular installation with other Excelon products
High efficiency water and particle removal
Highly visible, prismatic liquid level indicator lens
Quick release bayonet bowl
Push to lock adjusting knob with tamper resistant accessory

Products specifications
Adjusting Knob Acetal resin
Adjusting Screw Steel
Body Aluminium
Bonnet Aluminium
Bowl Aluminium
Bowl Capacity 0.10 l
Filter Element Sintered polypropylene
Filtration Rating 40.00 µm
Flow Rate 58 dm3/s
Gauge - Thread 1/4" NPT
Max. Air Pressure 17 (bar) 246 (psi) For metal bowl maximum inlet pressure is 17 bar and Operating temperature is -34 to +80°C
