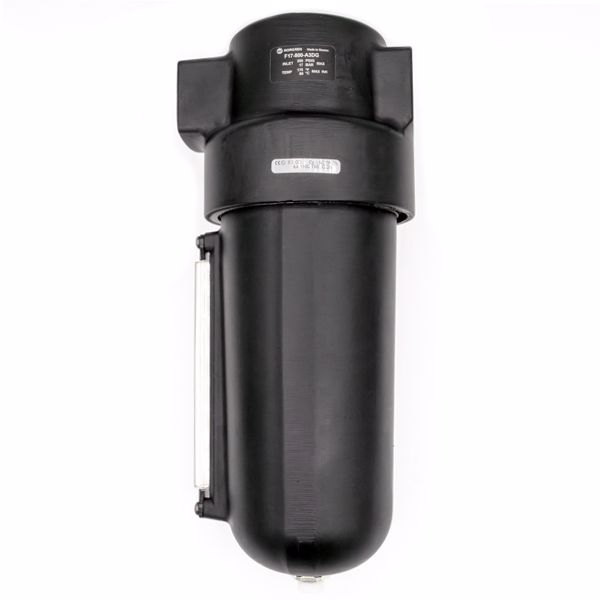

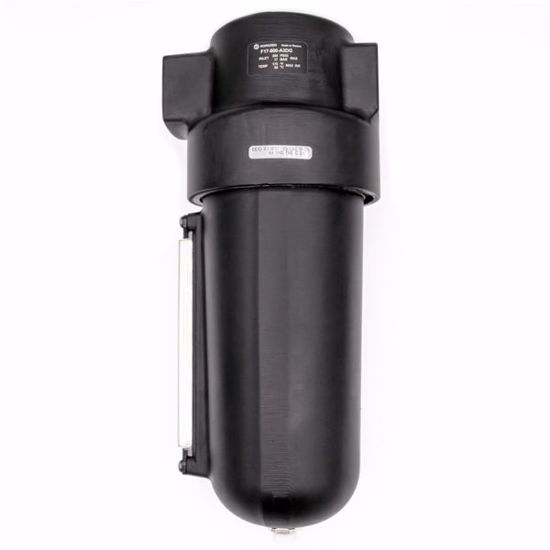

1" FILTER
Norgren 1" General Purpose Filter
* Protects air operated devices by removing liquid and solid contaminants from compressed air
* Screw-on bowl reduces maintenance time
* Can be serviced without the use of tools or removal from the air line
* Optional visual service indicator turns from green to red when the filter element needs to be cleaned or replaced
* Optional electrical service indicator also available
** Technical Data **
Fluid: Compressed air
Maximum pressure: 17 bar (250 psig)
Operating temperature:* 0° to +80°C (-0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F)
Particle removal: 40 um filter element
Air quality: Within ISO 8573-1, Class 3 and Class 5 (particulates)
Typical flow with a 40 um element at 6,3 bar (90 psig) inlet
pressure and 0,5 bar (7 psid ) pressure drop:
1" ports: 236 dm3/s (500 scfm)
Nominal bowl size: 1 litre (1 quart US)
Automatic drain connection: 1/8"
Automatic drain operating conditions:
Minimum pressure: 0,7 bar (10 psig).
Drain opens when bowl pressure drops below 0,2 bar (3 psig).
Minimum air flow: 1 dm3/s (2 scfm) required to close drain.
Materials:
Body: Aluminum
Bowl, 0,5 and 1 litre (1 pint and 1 quart US): Aluminum
Bowl sight glass: Pyrex
Elastomers: Neoprene and nitrile
Filter element: 40 um: Sintered bronze
