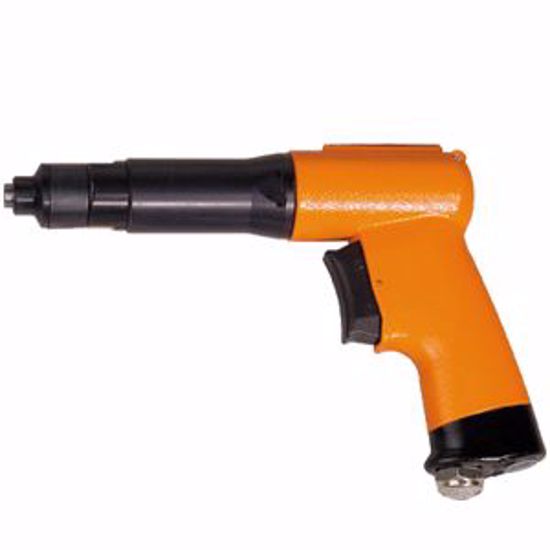

ERGOVIT20 PISTOL GRIP SCREWDRIVER

Brand: Ober
SKU: 8302311

ERGOVIT20 PISTOL GRIP SCREWDRIVER

1,800rpm 220 Watts Industrial Pistol Grip Screwdriver.

This clutch type stops the power supply to the motor and stops tool rotation when a preset torque is reached.

The clutch enables high-precision tightening torques (+/-15% in flexible fastenings and +/- 10% in rigid fastenings), increases productivity and eliminates waiting times. The system prevents vibration of the operator's hand. The clutch range is adjusted using one of the variety of springs available.

Screwdrivers of the ACCU-TRKĀ® family are supplied with a clutch spring enabling use of the maximum torque. If you require a lower adjustment range, request a spring with a lower rating.

Products specifications
Diameter Outside (od) 38 (mm) Body
Drive 1/4" Female Hex
Free Speed 1800 (rpm)
Hose Size I.D 8 (mm) min
Inlet 1/4" GAS
Length 225 (mm)
Screw Tightening - Metal M4 - M5
Sound Pressure 78 dB(A)
Spring Colour Orange
Torque 1.8 - 3.5 (Nm)
Watts 220
Weight 0.9 (kg)
