ELECTRIC COMPRESSOR 5.5KW FOR AIR BOTTLE

SKU: B.21.0101

ELECTRIC COMPRESSOR 5.5KW FOR AIR BOTTLE

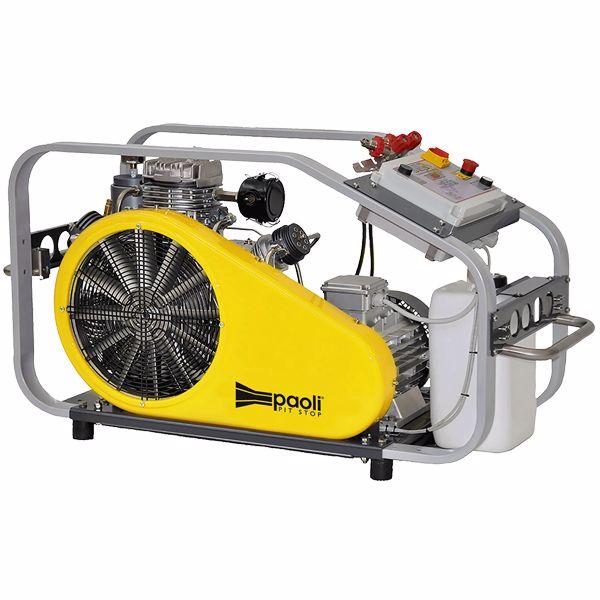

DPH380 (B.21.0101) Paoli Pit Stop Three-phase Electric Engine 5.5kW Compressor provides a quick and simple solution to providing a strong and steady supply for Paoli air systems. It comes standard with a final pressure switch with automatic stop. The new Paoli Pit Stop Compressors can deliver both 220 bar and 300 bar air pressure thanks to the high pressure hoses included.

Optional: automatic condensate drain (code B.21.0116).

Attachments

Products specifications
Capacity 300 l/min (10.6 cfm)
Engine Power Three-phase Electric: 5.5 kW (7.5 HP)
Noise Level 78 dB
Operating Pressure 300 bar (4,350 psi)
Overall Dimensions 118 x 54 x 69 cm
Weight 137 kg (302 lb)
