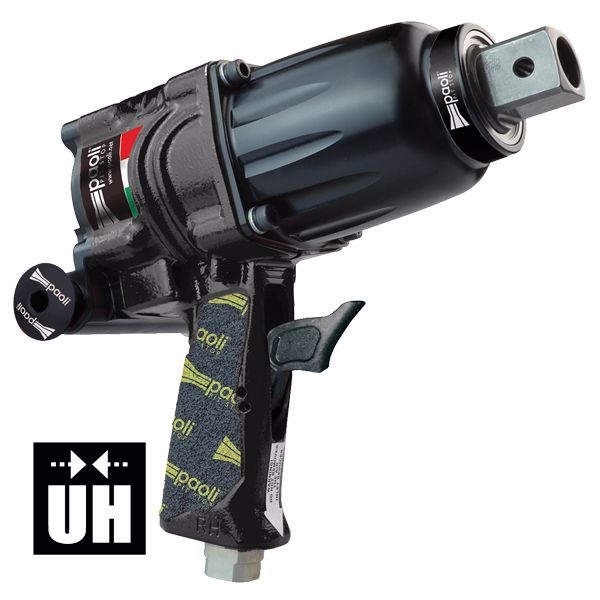

1" PITSTOP IMPACT WRENCH - ALLOY (UH)

SKU: DP4000-30BAR-A-UH

1" PITSTOP IMPACT WRENCH - ALLOY (UH)

DP4000-30BAR-A-UH (Un-Handed) 1" Drive Paoli Pitstop Wheel Gun range is developed to be used in the top racing series' across the globe. Covers are available in a choice of alloy or carbon fibre - this Model is complete with an Aerospace 7075 Aluminium Front cover.

The DP4000-30BAR has been used in Formula 1 and INDY so you can be sure the product has been professionally tried and tested. The wheel nut guns have been designed to be smaller, lighter and provide optimum efficiency in comparison with conventional wheel nut guns and are able to tighten or loosen a wheel nut in less than a second. The guns are manufactured to optimum quality standards and have had no reported failures during a race, vital where every second counts in the pitlane.

The Paoli DP4000-30BAR wheel guns are available in three types, either non handed (loosening and tightening at same speed), left or right handed for particular sides of the car and each gun is supplied a separate colourway for either side of the vehicle enabling ease of identification. This models Black colour signifies that its a Un-Handed gun.

You can also purchase seperately 2mm Thick Transparent Plastic Cover Part# B.18.0013

Products specifications
Application Example Formula 1, INDY.
Colour Black
Free Speed 15,000 rpm at 30 bar
Front Cover Aerospace 7075 Aluminium
Hose Size 13 mm (1/2")
Length 193 mm
Max. Air Pressure 30 bar (435 psi)
Square Drive 1"
Torque Max. 3,500 Nm (2,590 ft/lbs)
Weight 3.97 kg
