PORTABLE CAPSTAN WINCH 230V ELECT 820KG

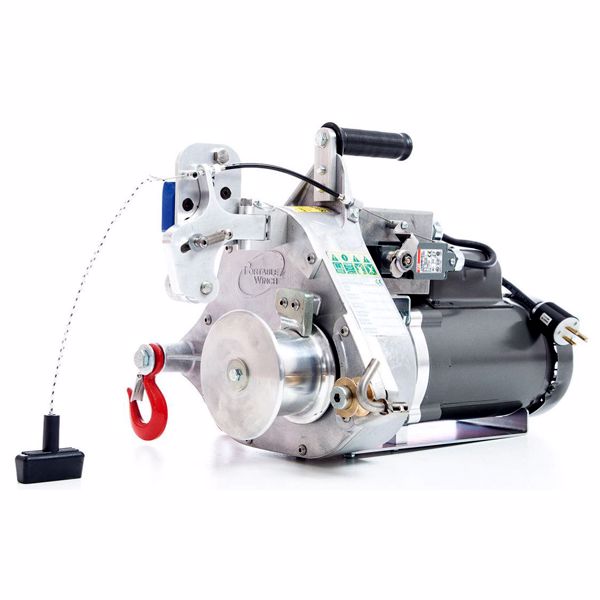

Portable Winch PCT-1800 230V Electric Pulling / Lifting Winch
Whenever you need to pull or lift something, whether it's a cable, a transformer, your truck, or anything else, you now have access to 820 kg of portable pulling power or 250 Kg of lifting power to work anywhere!
Powered by a dependable 3/4 HP Baldor 230V electric motor, the capstan Portable Winch will pull 820 kg or lift 250 Kg at speeds of up to 10.5 m / min.
Weighing only 27 Kg, the Portable Winch? is easily carried.
Can be anchored to anything using the 1.83 m long sling provided or the hitch plate for vehicles.
Use the Portable Winch with any length of low stretch rope.
We offer double-braided polyester rope in lengths of 30.5 m, 91.5 m and 183 m.
The rope is tied to the object to be moved and wound three times around the capstan drum.
When the motor is running, the capstan rotates continuously and the friction created by pulling on the free end of the rope pulls the object.
Load will move at a speed from 7 to 10.5 m / minute), depending on the weight of the load.
The 820 Kg pulling capacity of the Portable Winch compares with ATV electric winches but offers more advantages:
Portability (anchors to any tree or stump)
25% duty cycle
Constant pulling power (standard winches are rated for 1st layer pull)
Unlimited rope length
No kinks, pig tails or barbs on rope
*NOTE: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch.
Specifications
Motor Baldor 3/4 HP 230V 50Hz
Line Speed 7-10.5 m/min
Direct Line Pull 820 kg
Direct Line Lift 250 kg
Weight 27 kg
Drum Size 85 mm (Optional 57 mm)
