REDHEAD DUAL PROBE W/HANDLE 100MM CENTRE

Brand: Red Head
SKU: PP20DVM100

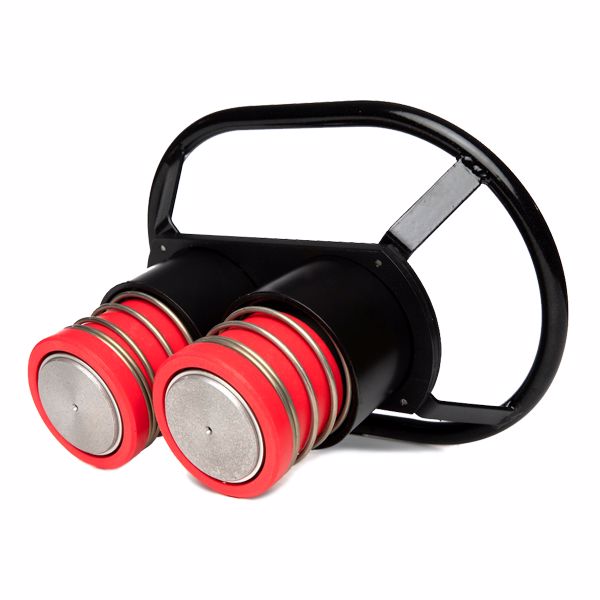

REDHEAD DUAL PROBE W/HANDLE 100MM CENTRE

RedHead FIA DUAL 2" Male Dry Break Valve w/100mm centers, 2.5" probe, 2.25" hose barb and 2.0" I.D. bore, assembly complete with (2) PP20M Probes, Handle and Flange Plate.

This assembly features two male Redhead 2.0" push-pull fuelling valves installed in a lightweight mount with a "basket" handle.
The valves are located on 100mm (3.94") centers to match the Redhead Dual 2.0" Female Receiver Valves on 100mm Centers, Dual Female Receiver Part No. PP20DVR100 (sold separately).

For use with gasoline and ethanol fuels. Either Probe can be used for fuel or vent.

This product uses a new Viton seal material that is compatible with gasoline, ethanol, E85, methanol, alcohol blends (virtually every fuel except nitromethane).

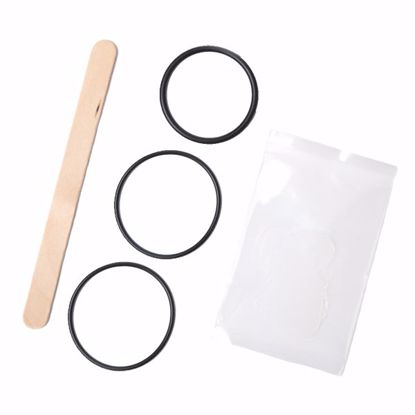

User serviceable with PRK Seal Kit.

Note that these Dual Male fuelling valves are also available arranged with 4.5" (114.3mm) centers, so be sure to measure yours before ordering.
