REDHEAD RECEIVER, REMOTE MOUNT, 9 BOLT 2

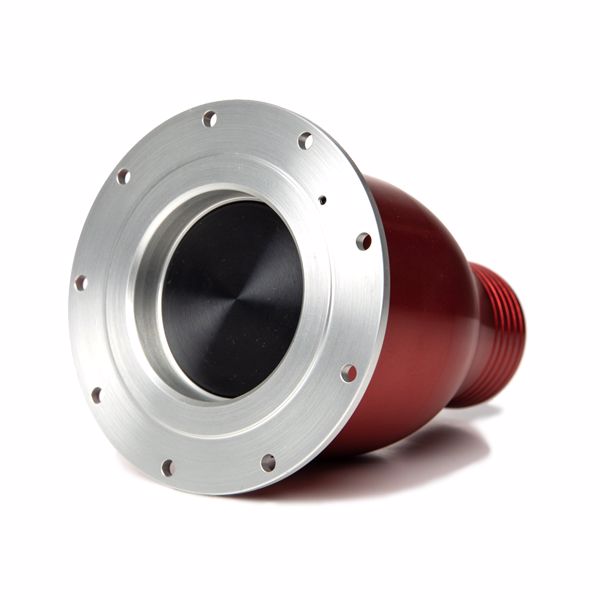

2" Remote Mount FIA Female Dry Break Valve.
This female receiver (receptacle) valve mounts on your vehicle, usually taking the place of a fender-mounted filler. The anodized Billet machined aluminum body (bulb) can be clamped into 2.25 inch ID rubber hose (sold separately).
PP20 Remote Mount Receiver with 4.0 inch bolt circle diameter. 9 Hole configuration designed for #10 attachment fasteners. Flows approximately 2 gallons per second when connected to the Redhead PP20M Male Probe Push-Pull Refueling Valve ( PP20M sold separately).
This product uses a new Viton seal material that is compatible with gasoline, ethanol, E85, methanol, alcohol blends (virtually every fuel except nitromethane).
User serviceable with RRK Seal Kit, gasoline and ethanol compatible.
