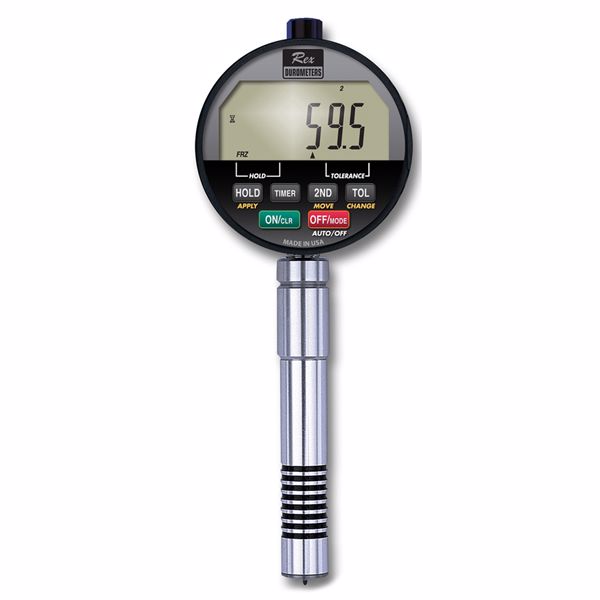

MODEL DD-5 DIGITAL DUROMETER (TypeA)

Brand: REX
SKU: DD-5-A

MODEL DD-5 DIGITAL DUROMETER (TypeA)

The Model DD-5 digital durometer is Rex Gauge's latest innovation for performing timed hardness testing. The Model DD-5 is equipped with an internal adjustable timer and onscreen countdown that can be set to a desired elapsed time from 0-30 seconds. When enabled, the timer function will be automatically activated when the presser foot meets the test specimen. Up to 200 readings can be stored and viewed inside the durometer or downloaded through the USB port.

Features:
* Adjustable Measurement Timer with Onscreen Countdown
* Store and View up to 200 Measurements
* Stored Measurement Readings can be Downloaded to a Computer Using the Rex Gauge USB Data Output Cable
* USB Data Output

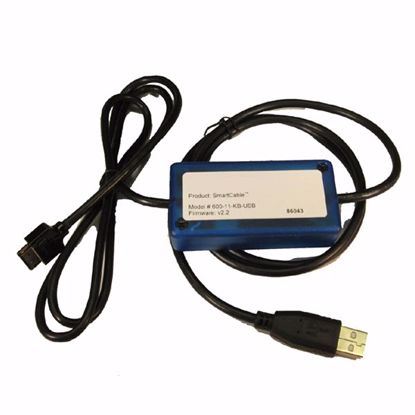

* Download and Collect Data Using USB Smart Cable (Sold Separately)
* Set Tolerance Limits
* Manufactured in Accordance with ASTM D2240 Specification
* Includes NIST Calibration Certificate
* Conforms to ASTM D-2240
* One Year Warranty
* Custom Made Carrying Case
* High and low buttons for setting tolerance limits
* Solid state circuitry with LCD display
* Batteries Included
* Response speed is immediate
* Holds reading until reset
* 0.1 resolution
* Dial rotates up to 270°
* Extra-Large Number Display
* ISO, DIN and JIS Conformance Also Available

Size: 2.5" x 6.125"H
Weight: 202 gram (7.15 oz)
