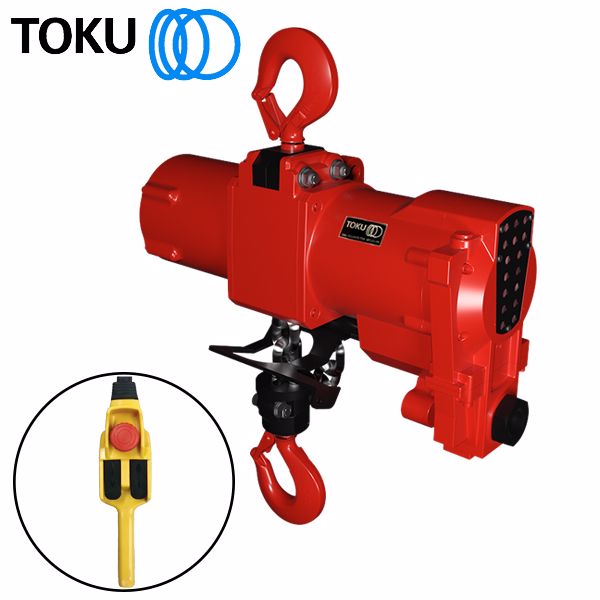

3,000kg AIR CHAIN HOIST C/W LOAD LIMITER
TMH3000PE 3,000kg Pendant Controlled, Compact, Heavy Duty Industrial Air Chain Hoist complete with Emergency Stop Pendant.
COMPLIES WITH AS1418.2
This NEW TOKU TMH series air chain hoists has the highest lifting speed with the lowest headroom on the hoist market and boasts a Built-In Load Limiter / Overload Protection as standard - an excellent OH&S safety feature and one that cannot be overlooked!
With the high M4 classification of mechanism (ISO 4301-1) this high speed air hoist is extremely durable and will guarantee the continuity of your process.
The TMH hoists are designed to operate at full lifting capacity with an air pressure from 4 - 6.3 bar.
For full speed operation the hoist air pressure should be 6.3 bar.
This hoist is for the most demanding applications including Offshore Oil & Gas, Above & Underground Mining, Construction, Tunnelling and many more !
You can specify your desired Height of Lift and Control Length at time of ordering to suit your application perfectly.
FEATURES
Built-in Automatic, adjustable load limiter without loss of headroomPrecise variable speed controlOptimum control of the load, very precise positioningRobust 3 step planetary gearboxFailsafe automatic internal disc brakeMechanical upper & lower switchesCast steel housingInternal silencing down to 82 dB(A)Alloy safety swivel hooks with safety catchHigh performance rotary vane motorExhaust can be piped away for even further reduced sound levels or to accomodate special exhaust requirementsDifferent Chain container options availableAttachments
