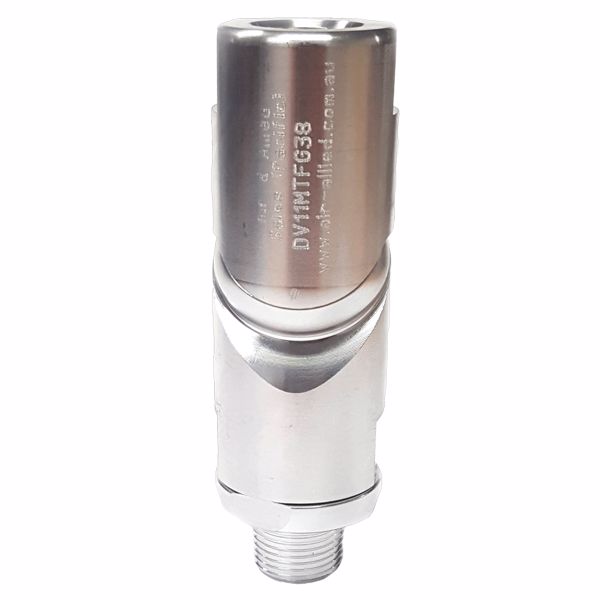

3/8" MULTI DIRECTION PNEUMATIC SWIVEL

Brand: Variacor
SKU: DV11MTFG38

3/8" MULTI DIRECTION PNEUMATIC SWIVEL

3/8" Pneumatic swivel fitting is unique in many ways. Nothing comes close to the flexibility this swivel provides, plus is does not restrict the air flow to the tool. This is achieved through its linear flow design which eliminates any sharp angles inside the swivel.

360 degree rotation on two points ensure absolutely no tangled supply air hoses and an amazing reduction of friction making the tool movement in your hand very free and easy!

There are many swivels available in this range for varied applications including fuel, paint and other fluids transfer. Specialty swivels also made to order, including electrical conductivity through the swivel.

Products specifications
Inside Diameter (id) 11 mm
Material of Construction Aluminium
Outside Diameter 30 mm
Overall Length 97 mm End to End 80 mm not including male thread
Rec. Flow 30 l/s
Thread Type 3/8" Male BSPT X 3/8" Female BSP
Weight 126 g
Working Pressure 10 bar
