PRESSURE GAUGE 0-230PSI(1600kpa) S/Steel

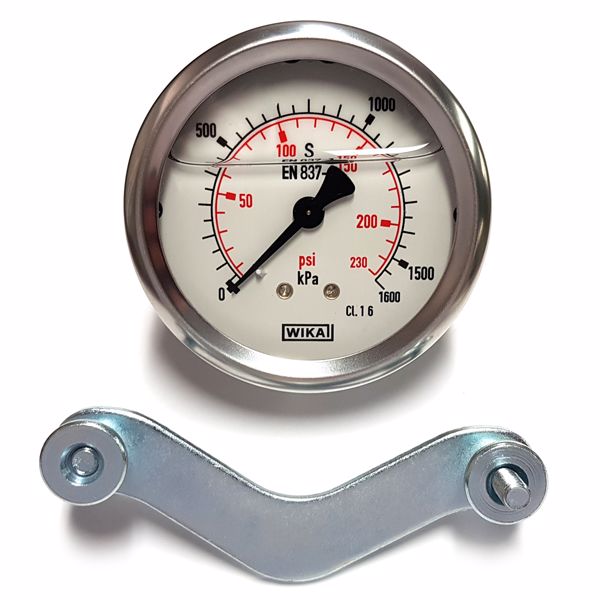

Pressure Gauge Zero to 230 PSI (1600 kPa) liquid filled complete with mounting bracket and 1/4" male BSPT rear entry thread. Suitable for use with silicone based brake fluid and other liquids or gases for testing of pressures.
Bourdon tube pressure gauge liquid filled
Case: stainless steel
Measuring system: copper alloy
Case: stainless steel 1.4301
Case: Crimp ring case (version 53)
Nominal size: 063 mm
Scale range: 0...1600 kPa
2nd Scale or Special Scale: 2nd scale psi
Process connection: R 1/4-ISO7 (DIN2999)
Connector location: back mount
Mounting flange/bracket: narrow panel ring, SS,rolled on,with mounting bracket
Restrictor: brass, D 0.5
Accuracy class: class 1.6
Overpressure safe: standard
Case filling fluid: Glycirine 99.7%
Pointer: plastic, black (double division)
Window: plastic, clear
Packaging: standard packing
Dial: plastic, white, with stop-pin
Dial description:
Pressure Gauge Standard: International (standard Europe)
Color for 1.scale (outside): black
Color for 2.scale (inside): red RAL 3020
Dial background: White
Stop pin on dial: at zero
Norm-mark on dial: *EN 837-1*
Safety mark on dial: *S*
Accuracy class on dial: *Cl.1.6*
