DUAL WALL OUTLET ASSEMBLY CP-32MM POLAIR

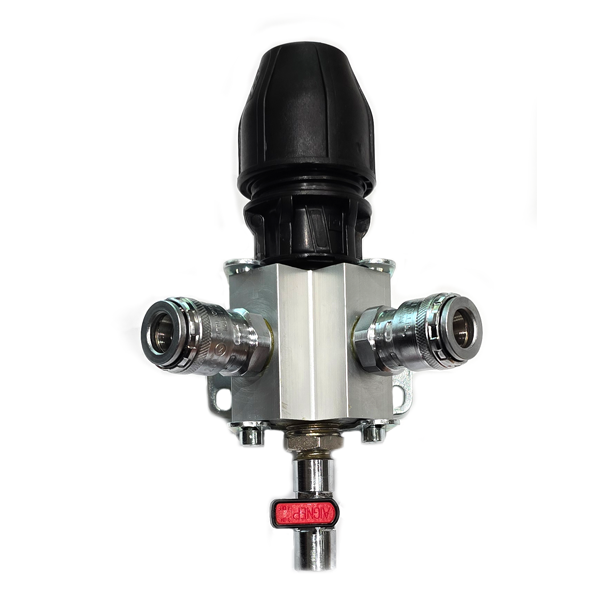

This is a solid aluminium wall mounted block complete with 2 Nitto One Touch pneumatic quick release fittings, drain ball valve and 32mm POLAIR poly pipe fitting (MA320) ready to fit to your air system.
This is a solid aluminium wall mounted block BARE with 1/2" BSP Female ports.
There is one port on each side (where the Nitto One-Touch fittings are fitted), one on the top (where the MA320 is fitted) and one on the bottom (where the drain valve is fitted)
Please note there are 3 other options available:
Part# WO-2-CP-12 a block complete with 2 Nitto One Touch pneumatic quick release fittings, drain ball valve and 25mm POLAIR poly pipe fitting (MA212) ready to fit to your air system.
OR
Part# WO-2-1234 a bare block version with 1/2" Female Threads on each side and the bottom and a 3/4" Female bsp thread on the top.
OR
Part# WO-2-12 a bare block version with 1/2" BSP Female Threads on all 4 ports.
