PUSH TROLLEY 1.0T (64-203MM)

Brand: Austlift
SKU: 131010

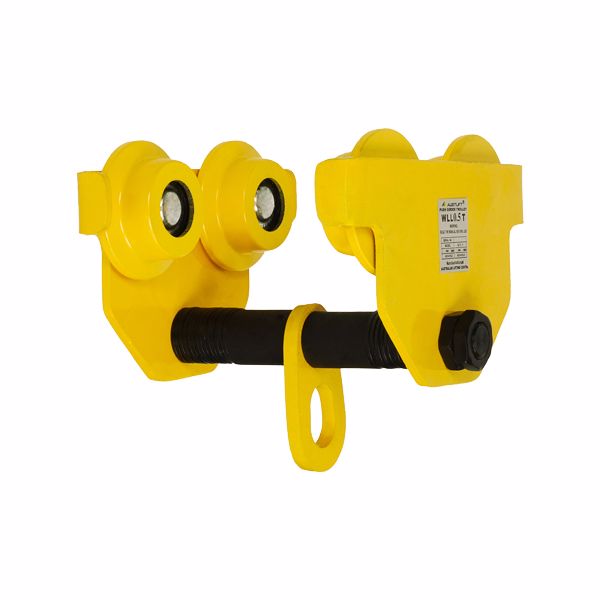

PUSH TROLLEY 1.0T (64-203MM)

This 1T Austlift Plain Trolley is moved by pushing the load lifted by the trolley, running along a flange of a monorail. A main shaft with spacers you can adjust the width of UB/UC beam. They are widely used in Factories, Mines, Wharves, Docks,Warehouses and Engineering Workshops for installation of equipment in places where no power supply is available.

Features:
* High quality sealed ball bearings.
* Identification tag with serial number.
* Proof tested to 2 x WLL with certificate.
* Fitted with anti-drop plates for safety.
* Low headroom by design.
* Complies to AS1418.2.

Products specifications
Beam Flange Width 64 - 203 mm
Body Material Steel
Dimension A 300 mm
Dimension B 236 mm
Dimension C 211 mm
Dimension D 115 mm
Min. Radius of Curve 0.9 m
Weight 8.9 kg
WLL 1,000 kg (1.0T)
