PUSH TROLLEY 5.0T (100-305MM)

Brand: Austlift
SKU: 131025

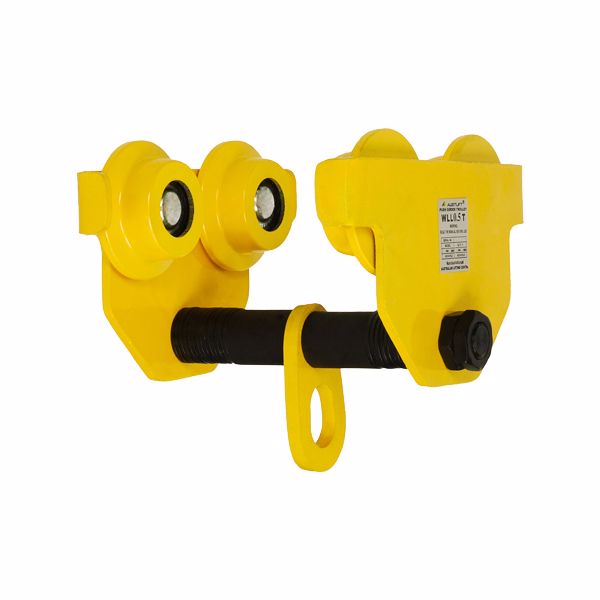

PUSH TROLLEY 5.0T (100-305MM)

This 5T Austlift Plain Trolley is moved by pushing the load lifted by the trolley, running along a flange of a monorail. A main shaft with spacers you can adjust the width of UB/UC beam. They are widely used in Factories, Mines, Wharves, Docks,Warehouses and Engineering Workshops for installation of equipment in places where no power supply is available.

Features:
* High quality sealed ball bearings.
* Identification tag with serial number.
* Proof tested to 2 x WLL with certificate.
* Fitted with anti-drop plates for safety.
* Low headroom by design.
* Complies to AS1418.2.

Products specifications
Beam Flange Width 100 - 305 mm
Body Material Steel
Dimension A 444 mm
Dimension B 366 mm
Dimension C 334 mm
Dimension D 177 mm
Min. Radius of Curve 1.3 m
Weight 36.3 kg
WLL 5,000 kg (5.0T)
