REDHEAD RECEIVER, TANK MOUNT, 9 BOLT

Brand: Red Head
SKU: PP20FTM

REDHEAD RECEIVER, TANK MOUNT, 9 BOLT

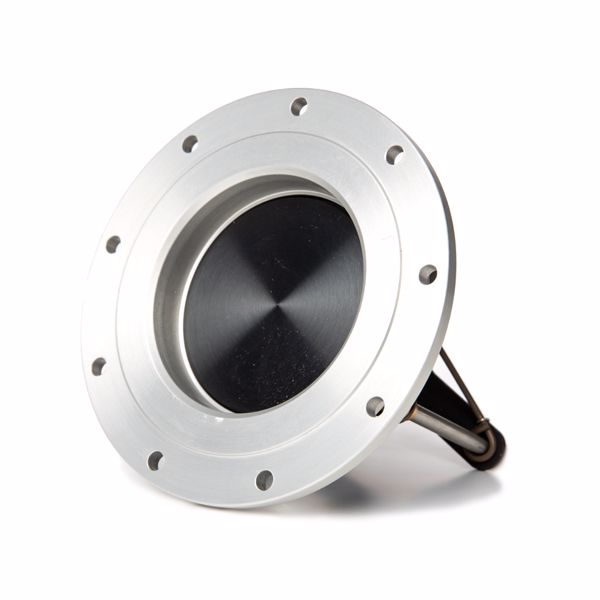

This 2" FIA Tank Mount FIA Female Dry Break Valve receiver (receptacle) valve mounts directly in the top of your fuel cell, eliminating the need for a remote feed hose (there is no provision for adding a remote feed hose).

PP20 Tank Mount Receiver with 4.0 inch bolt circle diameter. 9 Hole configuration designed for #10 attachment fasteners.

Flows approximately 2 gallons per second when connected to the Redhead PP20M Male Probe Push-Pull Refueling Valve (PP20M sold separately).

This product uses a new Viton seal material that is compatible with gasoline, ethanol, E85, methanol, alcohol blends (virtually every fuel except nitromethane).

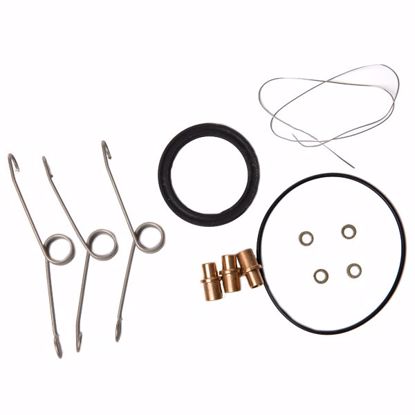

User serviceable with RRK Seal Kit, gasoline and ethanol compatible.
